Trimline Gutter

The Trimline Gutter is a high-capacity, modern rainwater system designed for use with profiled metal roofing. Its sharp, square-edged profile offers a smart, professional finish, making it ideal for both residential and commercial applications.

Each gutter is supplied with butt straps and gutter arms included in the price. The only extras you’ll need to select are the Left-Hand (L/H) and Right-Hand (R/H) Stop Ends, if required.

Material & Finish

• Galvanised steel with a plastisol or polyester coating

• Available in standard industry colours (e.g., Anthracite, Juniper Green, Goosewing Grey)

• Material thickness: 0.5mm to 0.7mm, depending on project needs

Typical Dimensions

• Width: 125mm–150mm

• Depth: 100mm–120mm

• Supplied in 3m standard lengths (cut-to-length available on request)

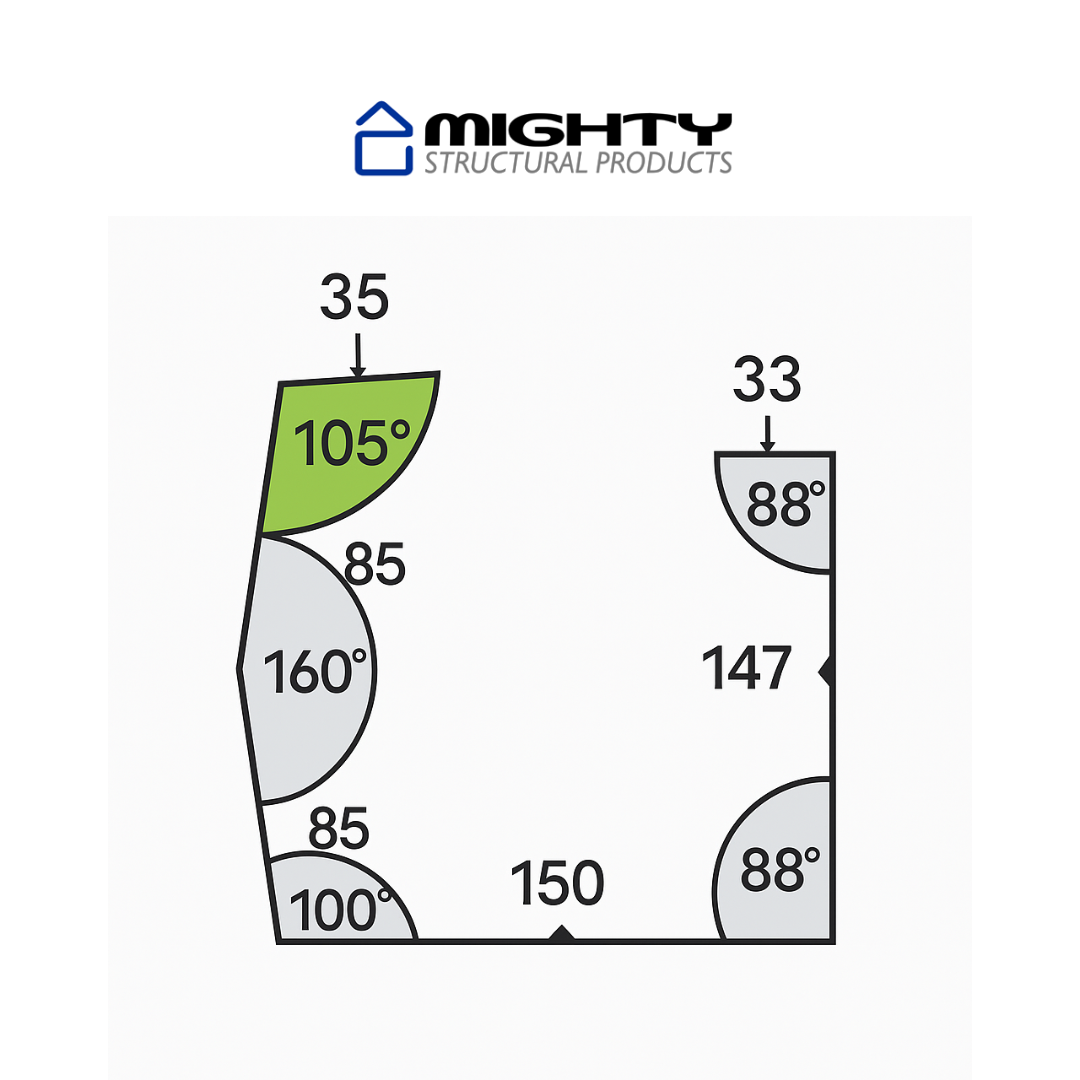

A full dimensional diagram is provided alongside for reference.

Installation & Compatibility

• Fixed using standard gutter arms (included)

• Butt straps supplied for joining sections

• Designed to work with 32/1000 box profile and other profiled metal sheets

What’s Included

• Trimline Gutter

• Butt Straps

• Gutter Arms

Optional Extras

• Left-Hand Stop End

• Right-Hand Stop End

Performance Highlights

• Modern, low-profile design for a clean architectural finish

• High flow rate for effective water drainage

• Weather-resistant and long-lasting coated finish

• Low-maintenance and easy to install

Category

Gutters

Measure the length of your roof from ridge to eave, adding 50-75mm for overhang at the eave. For width, our sheets provide 1 metre of coverage after overlap, so divide your roof width by 1m to calculate the number of sheets needed. Always round up to the nearest whole sheet.

Plastisol (PVC 200 micron) is a thicker, textured coating offering superior scratch and corrosion resistance. It provides a longer lifespan and is ideal for harsh environments. Polyester (25 micron) is a thinner, smoother finish with a wider colour range at a more affordable price. Both coatings provide excellent weather protection for roofing and cladding.

Yes! We offer competitive trade pricing on all our products. For large orders or ongoing trade accounts, please call us on 01922 649795 or request a quote for the best possible price.

The anti-condensation membrane is a fleece backing applied to the underside of roofing sheets. It absorbs moisture from condensation, preventing water dripping inside your building. It then releases the moisture back into the atmosphere when conditions improve. It is highly recommended for agricultural buildings, garages, and any unheated structure.

We stock three main profiles: Box Profile (32/1000) for a modern, clean appearance with excellent strength; Corrugated (13/3) for a traditional look ideal for agricultural and garden buildings; and Tile Effect for a classic tile appearance without the weight. All profiles are available in a range of colours and thicknesses.
